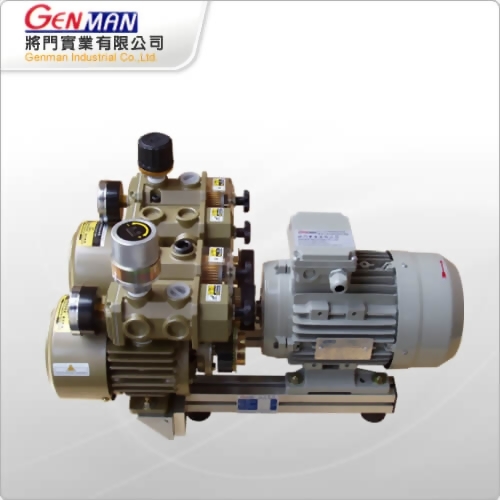

DVP-82
Features：
‧Oil-free carbon steel vane. Without environmental pollution problem.
‧Gear belt transmission design
‧Isolated vacuum & pressure operation mode
‧Operating vacuum & pressure is adjustable.
‧With built-in filters at both of suction inlet & discharge outlet port.
‧Suitable for printing industry.
‧Oil-free carbon steel vane. Without environmental pollution problem.
‧Gear belt transmission design
‧Isolated vacuum & pressure operation mode
‧Operating vacuum & pressure is adjustable.
‧With built-in filters at both of suction inlet & discharge outlet port.
‧Suitable for printing industry.
●Features
‧Oil-free carbon steel vane. Without environmental pollution problem.
‧Gear belt transmission design
‧Isolated vacuum & pressure operation mode
‧Operating vacuum & pressure is adjustable.
‧With built-in filters at both of suction inlet & discharge outlet port.
‧Suitable for printing industry.
●Specifications for Combination Model
‧The range of ambient operating temperature is between 0~40℃
‧Dimension & weight included 3-phase motor
‧Oil-free carbon steel vane. Without environmental pollution problem.
‧Gear belt transmission design
‧Isolated vacuum & pressure operation mode
‧Operating vacuum & pressure is adjustable.
‧With built-in filters at both of suction inlet & discharge outlet port.
‧Suitable for printing industry.
●Specifications for Combination Model
| Model | DVP-82 | |
| Nominal speed (r.p.m.) | 945 (50Hz) | 1135 (60Hz) |
|---|---|---|
| Discharge capacity (L/min) | 1130 | 1350 |
| Ultimate vacuum (mmHg) | -670 | |
| Continuous operative vacuum (mmHg) | Under -410以下 | |
| Continuous operative pressure (kg/cm²) | Under 0.5以下 | |
| Suction /Exhaust port | 1 PT | |
| Motor power 3phase | 3.7kw 4poles | |
| Dimensions (mm) (L×W×H) | 910×415×385 | |
| Weight (kgs) | 138 | |
‧Dimension & weight included 3-phase motor
