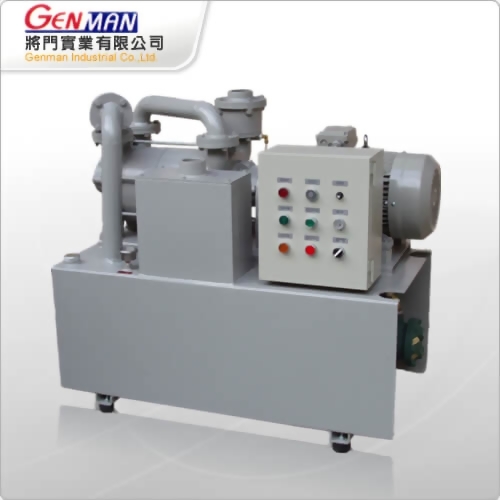

GOV-10DW
•Power：10 (HP)
•Pumping Speed：
50Hz：3.9 (m³/min)
60Hz：4.7 (m³/min)
•Ultimate Vacuum：3 (Torr)
•Suction Port：2 (inch)
•Pumping Speed：
50Hz：3.9 (m³/min)
60Hz：4.7 (m³/min)
•Ultimate Vacuum：3 (Torr)
•Suction Port：2 (inch)
●Water cooling model Specification
‧The temperature of inlet cooling water for water-cooled type heat exchanger is 30℃ below.
●Standard Accessories
‧3-phase induction motor
‧NM type coupling
‧Coupling cover
‧Vacuum check valve
‧Water-cooled type heat exchanger
‧Circulating oil reservoir set
‧Large removable oil sight glasses (excluded GOV-2HW, GOV-3HW)
‧Oil mist filter
‧Outlet pressure gauge
‧Anti-vibration rubber mounts
●Optional Accessories
‧Automatic Control Panel
‧Liquid Level Switch
‧Temperature Control Switch
‧Vacuum gauge
‧Inlet filter
‧Mechanical booster pumps
|
型 式 Model |
馬 力 Power (HP) |
排氣量 Discharge Cap. (m³/min) |
最終真空 Ultimate Vacuum (Torr) |
口徑 Pipe Orifice (inch) |
迴轉速 R.P.M. |
熱交換器 冷卻水口徑 |
熱交換器 冷卻水量 L/min |
||
| 50Hz | 60Hz | 50Hz | 60Hz | ||||||
| GOV-10DW | 10 | 3.9 | 4.7 | 3 | 2 | 1450 | 1750 | 3/4 PT | 30 |
|---|---|---|---|---|---|---|---|---|---|
●Standard Accessories
‧3-phase induction motor
‧NM type coupling
‧Coupling cover
‧Vacuum check valve
‧Water-cooled type heat exchanger
‧Circulating oil reservoir set
‧Large removable oil sight glasses (excluded GOV-2HW, GOV-3HW)
‧Oil mist filter
‧Outlet pressure gauge
‧Anti-vibration rubber mounts
●Optional Accessories
‧Automatic Control Panel
‧Liquid Level Switch
‧Temperature Control Switch
‧Vacuum gauge
‧Inlet filter
‧Mechanical booster pumps
