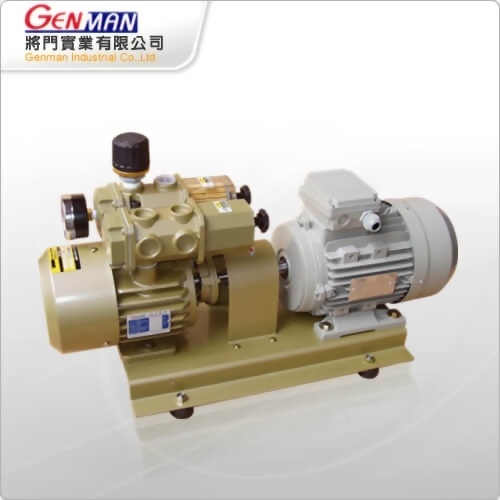

DVP-5
Features：
‧Oil-free carbon steel vane, without environmental pollution problem.
‧Simple installation, easy maintenance.
‧Operating vacuum & pressure is adjustable.
‧With built-in filters at both of intake & exhaust port.
‧Suitable for auto machinery, printing and binding, electronics, vacuum chucking.
‧Oil-free carbon steel vane, without environmental pollution problem.
‧Simple installation, easy maintenance.
‧Operating vacuum & pressure is adjustable.
‧With built-in filters at both of intake & exhaust port.
‧Suitable for auto machinery, printing and binding, electronics, vacuum chucking.
●Features
Oil-free carbon steel vane, without environmental pollution problem.
Simple installation, easy maintenance.
Operating vacuum & pressure is adjustable.
With built-in filters at both of intake & exhaust port.
Suitable for auto machinery, printing and binding, electronics, vacuum chucking.
●Specifications for Standard Model
■The range of ambient operating temperature is between 0~40℃
■Dimension & weight included 3-phase motor
Oil-free carbon steel vane, without environmental pollution problem.
Simple installation, easy maintenance.
Operating vacuum & pressure is adjustable.
With built-in filters at both of intake & exhaust port.
Suitable for auto machinery, printing and binding, electronics, vacuum chucking.
●Specifications for Standard Model
| Model | DVP-5 | |
| Nominal speed (r.p.m.) | 1450 (50Hz) | 1750 (60Hz) |
|---|---|---|
| Discharge capacity (L/min) | 405 | 480 |
| Ultimate vacuum (mmHg) | -670 | |
| Continuous operative vacuum (mmHg) | Under -450 | |
| Continuous operative pressure (kg/cm²) | Under 0.6 | |
| Suction /Exhaust port | 3/4PT | |
| Motor power 3phase | 0.75kw / 4poles | |
| Dimensions (mm) (L×W×H) | 560×270×265 | |
| Weight (kgs) | 27 | |
■Dimension & weight included 3-phase motor
