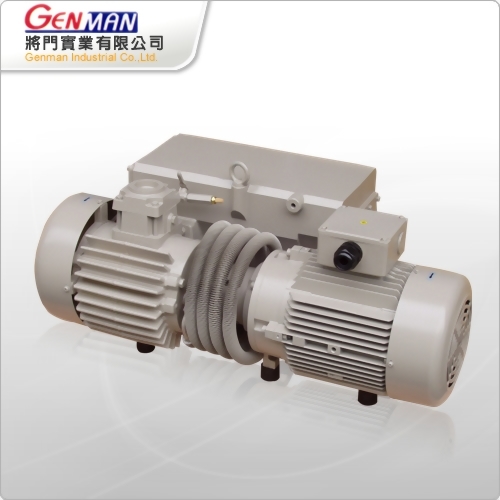

GRV-63
Feature：
1.Heavy duty construction, compact design, small footprint, air-cooled design, easy to install and maintenance
2.Direct drive without belt, low noise, low vibration, no need anchor bolts to fix
3.With a build-in high efficient filter, the oil mist was filtered out 99.9%.
4.Fitted Gas ballast valve to absorb gases containing water vapor.
5.Inlet check valve prevented the backflow of vacuum oil
6.The vane with high-tech material provided long vane life
1.Heavy duty construction, compact design, small footprint, air-cooled design, easy to install and maintenance
2.Direct drive without belt, low noise, low vibration, no need anchor bolts to fix
3.With a build-in high efficient filter, the oil mist was filtered out 99.9%.
4.Fitted Gas ballast valve to absorb gases containing water vapor.
5.Inlet check valve prevented the backflow of vacuum oil
6.The vane with high-tech material provided long vane life
●Technical Information
| Specification / Model | GRV-63 |
| pumping volume m³/h 50/60Hz | 63 / 75 |
|---|---|
| ultimate vacuum mbar | 0.5 |
| Motor Kw 50/60Hz | 1.8 / 2.2 |
| Spindle speeds r.p.m 50/60Hz | 1450 / 1750 |
| Power phase | 3ph |
| Voltage~V | 200~240V / 380~440V |
| Inlet inch PT | 1 1/4" |
| Discharge inch PT | 1 1/4" |
| Fuel injection liter | 2.0 |
| Noise dB(A) | 75 |
| Dimensions LxWxH mm | 647x406x325 |
| Net Weight Kgs | 62 |
