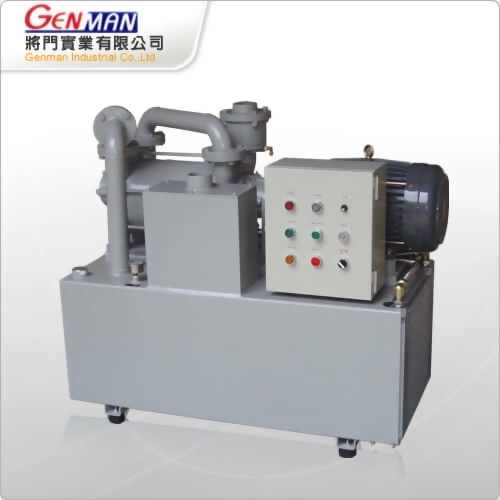

GOV-5DA
Feature：
1.All-in-one, simple installation: integrated oil tank, heat radiator and control panel.
2.Automatic control system provided protection against pump overheat, motor overload and exceeded oil level.
3.Long machine service life. The usage hours of circulating oil is double times more than the other vacuum pumps.
4.Totally sealed pipeline design, clean operation, and without environmental pollution.
5.With built-in high efficient oil mist filters, and the oil mist was filtered out 99.9%.
6.An Inlet vacuum check valve with stainless filter screen prevented the backflow of vacuum oil.
7.The ultimate vacuum of single pump was 3 Torr, and series connected mechanical booster pump reached to 10¯² Torr and pumping speed is increased.
8.A large removable oil sight glasses is easy to check the oil level and clean the circulating oil reservoir.
1.All-in-one, simple installation: integrated oil tank, heat radiator and control panel.
2.Automatic control system provided protection against pump overheat, motor overload and exceeded oil level.
3.Long machine service life. The usage hours of circulating oil is double times more than the other vacuum pumps.
4.Totally sealed pipeline design, clean operation, and without environmental pollution.
5.With built-in high efficient oil mist filters, and the oil mist was filtered out 99.9%.
6.An Inlet vacuum check valve with stainless filter screen prevented the backflow of vacuum oil.
7.The ultimate vacuum of single pump was 3 Torr, and series connected mechanical booster pump reached to 10¯² Torr and pumping speed is increased.
8.A large removable oil sight glasses is easy to check the oil level and clean the circulating oil reservoir.
●Air-cooling model Specification
‧Air-cooled type suited for well ventilation and temperature 40℃ below.
●Standard Accessories
‧three-phase induction motor
‧NM type coupling
‧Coupling cover
‧Vacuum check valve
‧Air-cooled type heat exchanger
‧Circulating oil reservoir set
‧Large removable oil sight glasses (excluded GOV-2HW, GOV-3HW)
‧Oil mist filter
‧Outlet pressure gauge
‧Anti-vibration rubber mounts
●Optional Accessories
‧Automatic Control Panel
‧Liquid Level Switch
‧Temperature Control Switch
‧Vacuum gauge
‧Inlet filter
‧Mechanical booster pumps
| Model |
Power (HP) |
Discharge Cap. (m³/min) |
Ultimate Vacuum (Torr) |
Pipe Orifice (inch) |
R.P.M. | ||
| 50Hz | 60Hz | 50Hz | 60Hz | ||||
| GOV-5DA | 5 | 1.82 | 2.2 | 3 | 2 | 1450 | 1750 |
|---|---|---|---|---|---|---|---|
●Standard Accessories
‧three-phase induction motor
‧NM type coupling
‧Coupling cover
‧Vacuum check valve
‧Air-cooled type heat exchanger
‧Circulating oil reservoir set
‧Large removable oil sight glasses (excluded GOV-2HW, GOV-3HW)
‧Oil mist filter
‧Outlet pressure gauge
‧Anti-vibration rubber mounts
●Optional Accessories
‧Automatic Control Panel
‧Liquid Level Switch
‧Temperature Control Switch
‧Vacuum gauge
‧Inlet filter
‧Mechanical booster pumps
