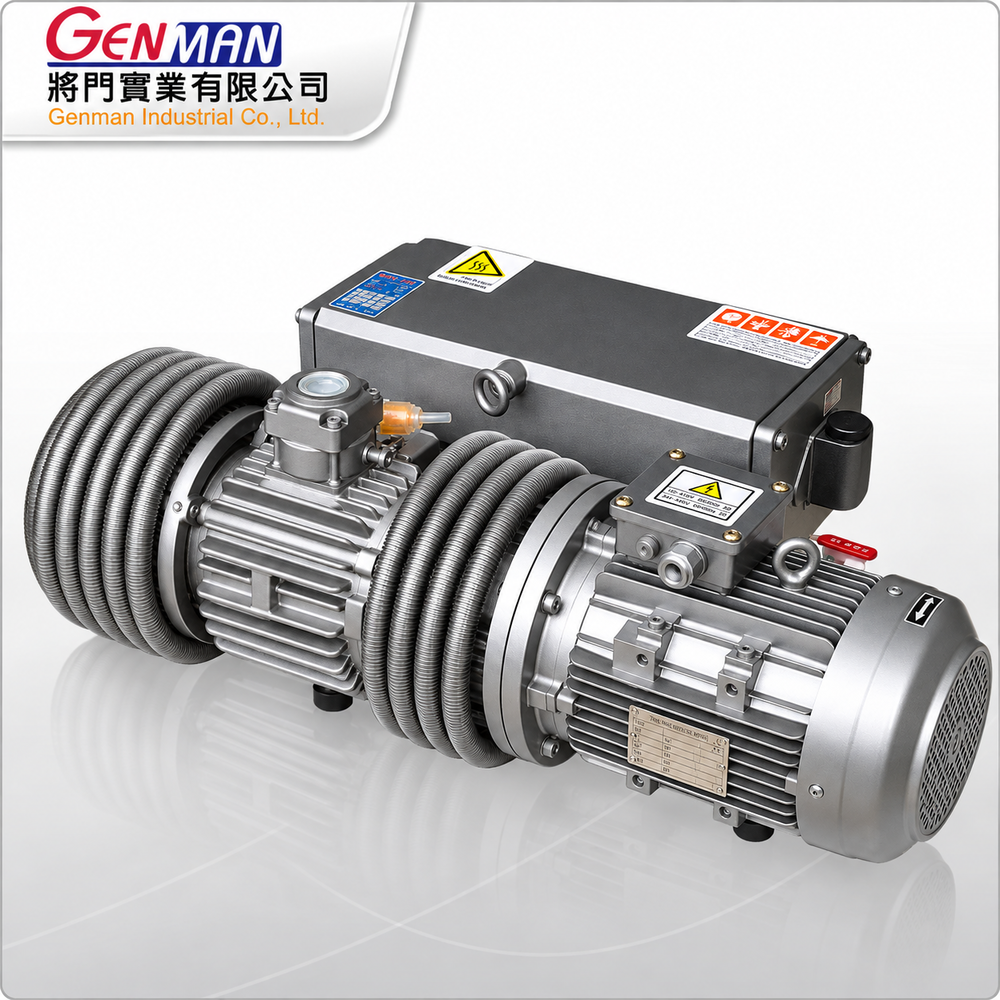

GRV-8SM
Feature:
1.Heavy duty construction, compact design, small footprint, air-cooled design, easy to install and maintenance
2.Direct drive without belt, low noise, low vibration, no need anchor bolts to fix
3.With a build-in high efficient filter, the oil mist was filtered out 99.9%.
4.Fitted Gas ballast valve to absorb gases containing water vapor.
5.Inlet check valve prevented the backflow of vacuum oil
6.The vane with high-tech material provided long vane life
1.Heavy duty construction, compact design, small footprint, air-cooled design, easy to install and maintenance
2.Direct drive without belt, low noise, low vibration, no need anchor bolts to fix
3.With a build-in high efficient filter, the oil mist was filtered out 99.9%.
4.Fitted Gas ballast valve to absorb gases containing water vapor.
5.Inlet check valve prevented the backflow of vacuum oil
6.The vane with high-tech material provided long vane life
●Technical Information
| 規格 Specification / 型 號 Model | GRV-140 |
| 排氣量 m³/h 50/60Hz | 140 / 168 |
|---|---|
| 最終真空 mbar | 0.5 |
| 馬力 Kw 50/60Hz | 4.0 / 4.8 |
| 轉速 r.p.m 50/60Hz | 1450 / 1750 |
| 電源相數phase | 3ph |
| 電壓 ~V | 220~240V / 380~440V |
| 吸入口徑 inch PT | 1 1/2" |
| 排出口徑 inch PT | 1 1/2" |
| 注油量 liter | 2 |
| 噪音值 dB(A) | 71 |
| 外型尺寸 LxWxH mm | 780x435x335 |
| 淨重 Kgs | 90 |
