Taiwan liquid ring vacuum pumps manufacturer

Two-Stage GWV series

Operation range：160 ~ 40Torr

Ultimate vacuum：25Torr

Model	Motor Power	Speed	Pumping Speed m³/min				Suction Port	Discharge Port	Sealing liquid inlet	Sealing liquid supply
Model	HP	r.p.m.	720 mmHg (40 Torr)	-695 mmHg (65 Torr)	-670 mmHg (90 Torr)	-650 mmHg (110 Torr)	inch	inch	inch	L / min
GWV-2H	2	3450	0.42	0.51	0.52	0.52	1	1	1/4	7
GWV-3H	3	3450	0.71	0.86	0.87	0.88	1	1	1/4	8
GWV-5	5	1750	1.44	1.83	1.86	1.87	2	2	1/2	18
GWV-5D	5	1750	1.8	2.06	2.09	2.1	2	2	3/4	24
GWV-7	7.5	1750	2.11	2.8	2.88	2.9	2	2	1/2	20
GWV-7D	7.5	1750	2.63	3.3	3.37	3.4	2	2	3/4	25
GWV-10	10	1750	2.75	3.5	3.68	3.72	2	2	1/2	20
GWV-10D	10	1750	3.34	4.3	4.43	4.49	2	2	3/4	25
GWV-15	15	1750	4.6	5.6	5.7	5.9	2	2	3/4	40
GWV-20	20	1750	5.7	6.8	7.5	7.6	2	2	3/4	45
GWV-25	25	1750	7.1	8.3	9.1	9.2	2.5	2.5	3/4	50
GWV-30	30	1750	7.6	9.5	10.4	10.6	2.5	2.5	3/4	50

●Accessories

Standard	Optional
3 Phase motor	Gas-liquid separator	Liquid-sealed circulating cooled system
Base plate	Vacuum check valve (with SUS 304 filter screen)	Heat exchanger
NM coupling	Inlet flange (with SUS 304 filter screen)	Air Ejector
Coupling cover (Safety cover)	Anti-cavitation valve	Vacuum valve
Inlet flannel attached with SUS 304 filter (GWV-2H / GWV-3H)	Flow sensor	Vacuum gauge

●The performance testing conditions for liquid ring vacuum pumps are as follows:

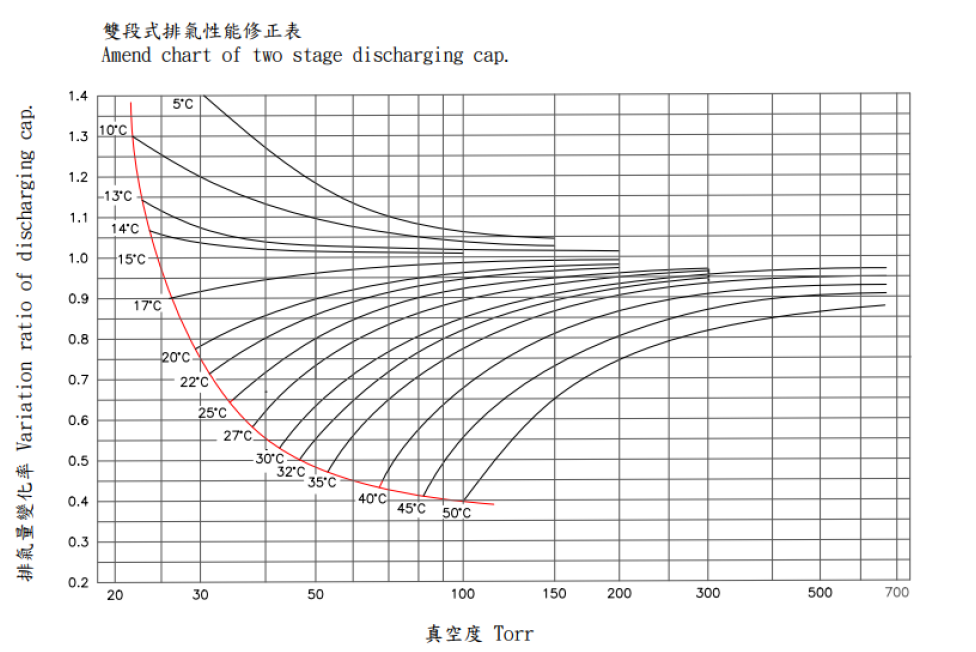

The exhaust performance specified in the catalog is based on the test conditions where the inlet air temperature is 20°C, the outlet pressure is 760 Torr, the relative humidity is 75%, and the liquid seal water temperature is 15°C. If the actual liquid seal water temperature differs from 15°C, please refer to the exhaust performance correction table to adjust the actual exhaust volume accordingly. When operating beyond the redline area, the liquid ring vacuum pump may experience cavitation and generate noise and vibration, so please avoid using it under such conditions.

The performance testing conditions for liquid ring vacuum pumps

●Performance Distribution Chart for Our Full Range of Liquid Ring Vacuum Pumps
