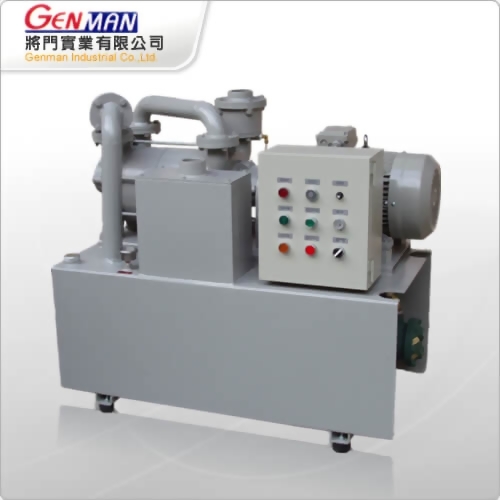

GOV-5DW
•Power：5 (HP)
•Pumping Speed：
50Hz：1.82 (m³/min)
60Hz：2.2 (m³/min)
•Ultimate Vacuum：3 (Torr)
•Suction Port：2 (inch)
•Pumping Speed：
50Hz：1.82 (m³/min)
60Hz：2.2 (m³/min)
•Ultimate Vacuum：3 (Torr)
•Suction Port：2 (inch)
●Water cooling model Specification
‧The temperature of inlet cooling water for water-cooled type heat exchanger is 30℃ below.
●Standard Accessories
‧3-phase induction motor
‧NM type coupling
‧Coupling cover
‧Vacuum check valve
‧Water-cooled type heat exchanger
‧Circulating oil reservoir set
‧Large removable oil sight glasses (excluded GOV-2HW, GOV-3HW)
‧Oil mist filter
‧Outlet pressure gauge
‧Anti-vibration rubber mounts
●Optional Accessories
‧Automatic Control Panel
‧Liquid Level Switch
‧Temperature Control Switch
‧Vacuum gauge
‧Inlet filter
‧Mechanical booster pumps
| Model |
Power (HP) |
Discharge Cap. (m³/min) |
Ultimate Vacuum (Torr) |
Pipe Orifice (inch) |
R.P.M. |
Cooling water heat exchanger caliber |
L/min |
||
| 50Hz | 60Hz | 50Hz | 60Hz | ||||||
| GOV-5DW | 5 | 1.82 | 2.2 | 3 | 2 | 1450 | 1750 | 3/4 PT | 30 |
|---|---|---|---|---|---|---|---|---|---|
●Standard Accessories
‧3-phase induction motor
‧NM type coupling
‧Coupling cover
‧Vacuum check valve
‧Water-cooled type heat exchanger
‧Circulating oil reservoir set
‧Large removable oil sight glasses (excluded GOV-2HW, GOV-3HW)
‧Oil mist filter
‧Outlet pressure gauge
‧Anti-vibration rubber mounts
●Optional Accessories
‧Automatic Control Panel
‧Liquid Level Switch
‧Temperature Control Switch
‧Vacuum gauge
‧Inlet filter
‧Mechanical booster pumps
