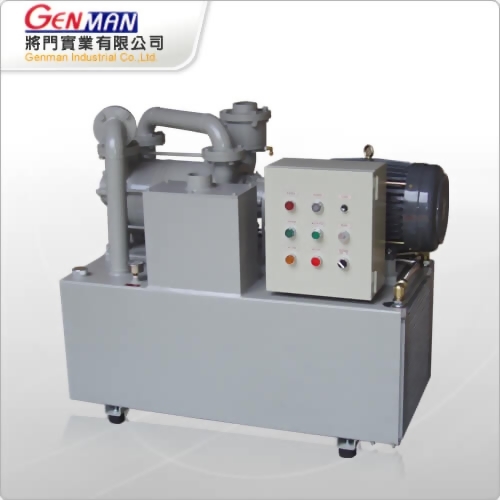

GOV-7DA
•Power：7.5 (HP)
•Pumping Speed：
50Hz：3 (m³/min)
60Hz：3.65 (m³/min)
•Ultimate Vacuum：3 (Torr)
•Suction Port：2 (inch)
•Pumping Speed：
50Hz：3 (m³/min)
60Hz：3.65 (m³/min)
•Ultimate Vacuum：3 (Torr)
•Suction Port：2 (inch)
●Air-cooling model Specification
‧Air-cooled type suited for well ventilation and temperature 40℃ below.
●Standard Accessories
‧three-phase induction motor
‧NM type coupling
‧Coupling cover
‧Vacuum check valve
‧Air-cooled type heat exchanger
‧Circulating oil reservoir set
‧Large removable oil sight glasses (excluded GOV-2HW, GOV-3HW)
‧Oil mist filter
‧Outlet pressure gauge
‧Anti-vibration rubber mounts
●Optional Accessories
‧Automatic Control Panel
‧Liquid Level Switch
‧Temperature Control Switch
‧Vacuum gauge
‧Inlet filter
‧Mechanical booster pumps
|
型 式 Model |
馬 力 Power (HP) |
排氣量 Discharge Cap. (m³/min) |
最終真空 Ultimate Vacuum (Torr) |
口徑 Pipe Orifice (inch) |
迴轉速 R.P.M. |
||
| 50Hz | 60Hz | 50Hz | 60Hz | ||||
| GOV-7DA | 7.5 | 3 | 3.65 | 3 | 2 | 1450 | 1750 |
|---|---|---|---|---|---|---|---|
●Standard Accessories
‧three-phase induction motor
‧NM type coupling
‧Coupling cover
‧Vacuum check valve
‧Air-cooled type heat exchanger
‧Circulating oil reservoir set
‧Large removable oil sight glasses (excluded GOV-2HW, GOV-3HW)
‧Oil mist filter
‧Outlet pressure gauge
‧Anti-vibration rubber mounts
●Optional Accessories
‧Automatic Control Panel
‧Liquid Level Switch
‧Temperature Control Switch
‧Vacuum gauge
‧Inlet filter
‧Mechanical booster pumps
